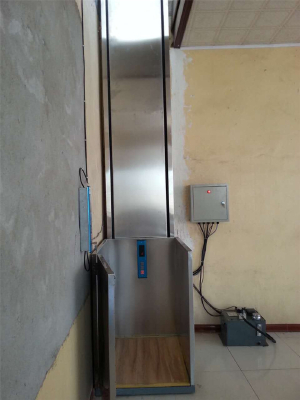

Home stair lift is my company researchers draw on the principles of self-developed hydraulic trolley a new alternative for small elevator hydraulic lifts, reasonable structure design, there is a guide mechanism, lifting platforms, hydraulic cylinders, hydraulic pump stations, transmission chain, home stairs elevator and the elevator rail electrical box and other components. It uses the remaining space in the corner, wall installation, convenient, does not occupy an area of the room, instead of the elevator affordable, suitable for two, three-storey building. The small size of the region hop buildings, attic, basement, etc. saving staircase area, increase the room space, less power consumption, low noise, is an ideal alternative to the stairs new products .220v input voltage 36v low voltage output, to ensure that the electricity safety. Install button can be layered, multi-point control. There are tracks to pit for customers to choose, design specifications can be flexible according to the actual situation.

    Small elevator home elevator economy, customer satisfaction is our pursuit. Especially for the small size of the room, unable to install stair place. Fixed small hydraulic lifts, rated load 300kg, power supply with 220v AC (or DC 24v), with stable performance, high safety factor, low noise, small footprint, low height equipment (ground only 80mm), travel to reach 3-5m. Particularly advantageous in the elderly, disabled people on the downstairs cargo handling. Welcome Chinese and foreign customers to order.

【Applications】

1. The hydraulic lifting platform (referred to as the platform) at the factory, the technical indicators have reached the design requirements, use only the power, hydraulic, electrical systems without adjustment.

2. lifting platform carefully checked prior to use hydraulic, electrical systems, no leakage phenomenon, or bare.

3. The lifting platform in front of the lift shall remain unloaded state, after turning on the power, the power indicator light, open the total stop button; the motor start button is pressed.

4. Press the rise (green) button to see whether the lifting platform response, the motor idling for 3-5 minutes, if not increased, motor reversal, cutting off power to exchange two phase motor.

5. Press the UP button (green light), the platform began to increase after reaching the desired height, the platform automatically stops (green light turns off), and then press the drop button (yellow light), the platform began to decline, down to its original position after, automatic power-off solenoid valve (yellow light goes out).

6. lifting platform up or down in the process, if you need to stop, press the stop button (red button).

7. After closing off the power.
